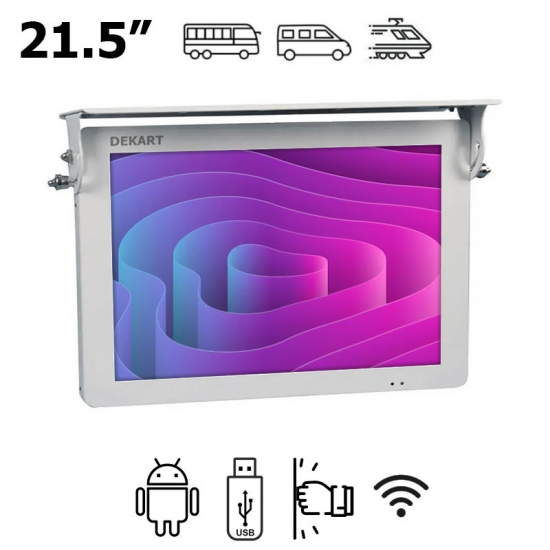

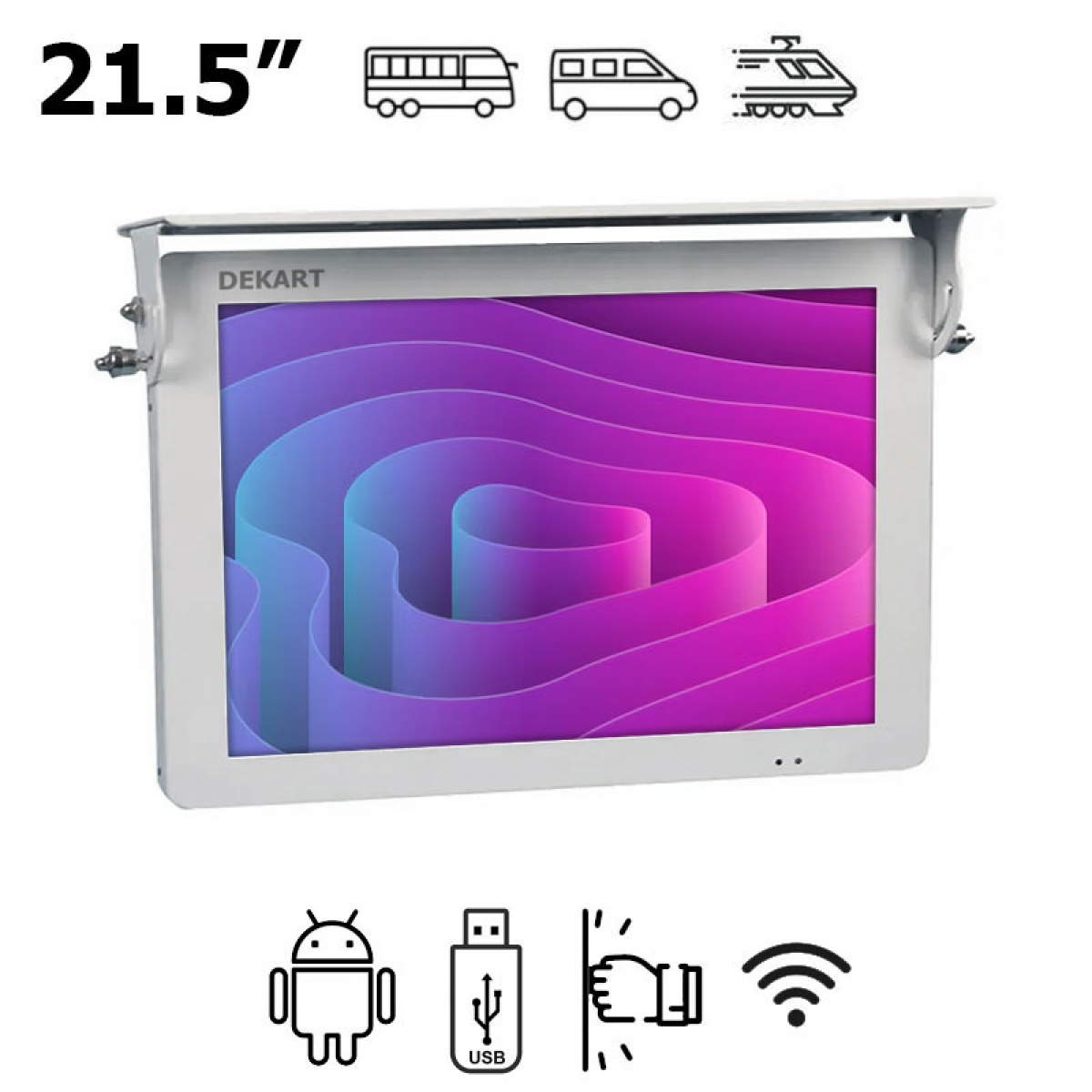

22" Transport Advertising Display – Dekart DITTV-22001-GY
- Stock: In Stock
- Model: DITTV-22001-GY
Professional 22" Public Transport Advertising Display with Anti-Vandal Casing and Android Player
The Dekart DITTV-22001-GY is a state-of-the-art digital display for public transport, designed for buses, minibuses, electric buses, trains, and other public vehicles. With a screen size of 22 inches (56 cm) and a visible area of 48 × 27 cm, this monitor seamlessly integrates into any transport interior. Available with 2-32GB RAM and 16-256GB storage options to suit various deployment needs. Its sleek anti-vandal casing and tempered glass protection ensure durability under demanding conditions.
Featuring FullHD resolution, this display delivers a bright and clear picture that captures passenger attention. The built-in advertising media player and Android operating system support a wide range of applications. Videos can be played from a USB drive or managed remotely via the internet (remote management is an optional feature). The monitor also offers automatic power-on when the vehicle starts, simplifying daily operation.
Product Functions
- Auto power-on when power connected
- Auto start operating when power is connected, nothing needs to be enabled manually
- Automatic playlist repeat, around the clock, all year round
- Automatic restart in case of power failure
- Support all modern Video, Image, Music formats
- Display Websites and HTML pages
- Update media on internal memory with USB flash
Product Features
- Durable metal housing
- Screen protection with tempered glass
- High-quality LCD IPS screen (full view angles)
- High-quality FullHD (1920x1080px) screen
- Top level colors, brightness, contrast
- Full view angle screen (178/178 degree)
- Android OS 2/16Gb
- Built-in speakers 2x5W
- Internal power supply
- IR remote control
- Multilingual settings menu
- Top quality professional-grade parts only
Available options (please specify when ordering)
- Option: Video input interfaces only (HDMI/DP/DVI/VGA/RCA options)
- Option: Internal AD Player from USB flash
- Option: Android OS 4/32Gb or more
- Option: Windows OS 4/120Gb or more
- Option: CMS for Remote control via LAN/Internet - remote update of media files and playlists
- Option: Door with lock for the interfaces
- Option: Special climate adaptation for hot and cold conditions
- Option: HD Camera
- Option: 4K Camera
- Option: Location services GPS/Glonass/Beidou
- Option: Splitscreen into zones for simultaneous display of multiple media
- Option: Show date and time in the corner of the screen
- Option: AV input (CVBS)
- Option: HDMI video + audio input
- Option: DisplayPort
- Option: VGA
- Option: DVI
- Option: AUX/Headphones Audio output
- Option: 3G / 4G / 5G network connection
- Option: RS232 I/O Interface (COM PORT)
- Option: RS485 I/O Interface
- Option: Bluetooth
- Option: NFC
Product cases
22" Transport Advertising Display – Dekart DITTV-22001-GY

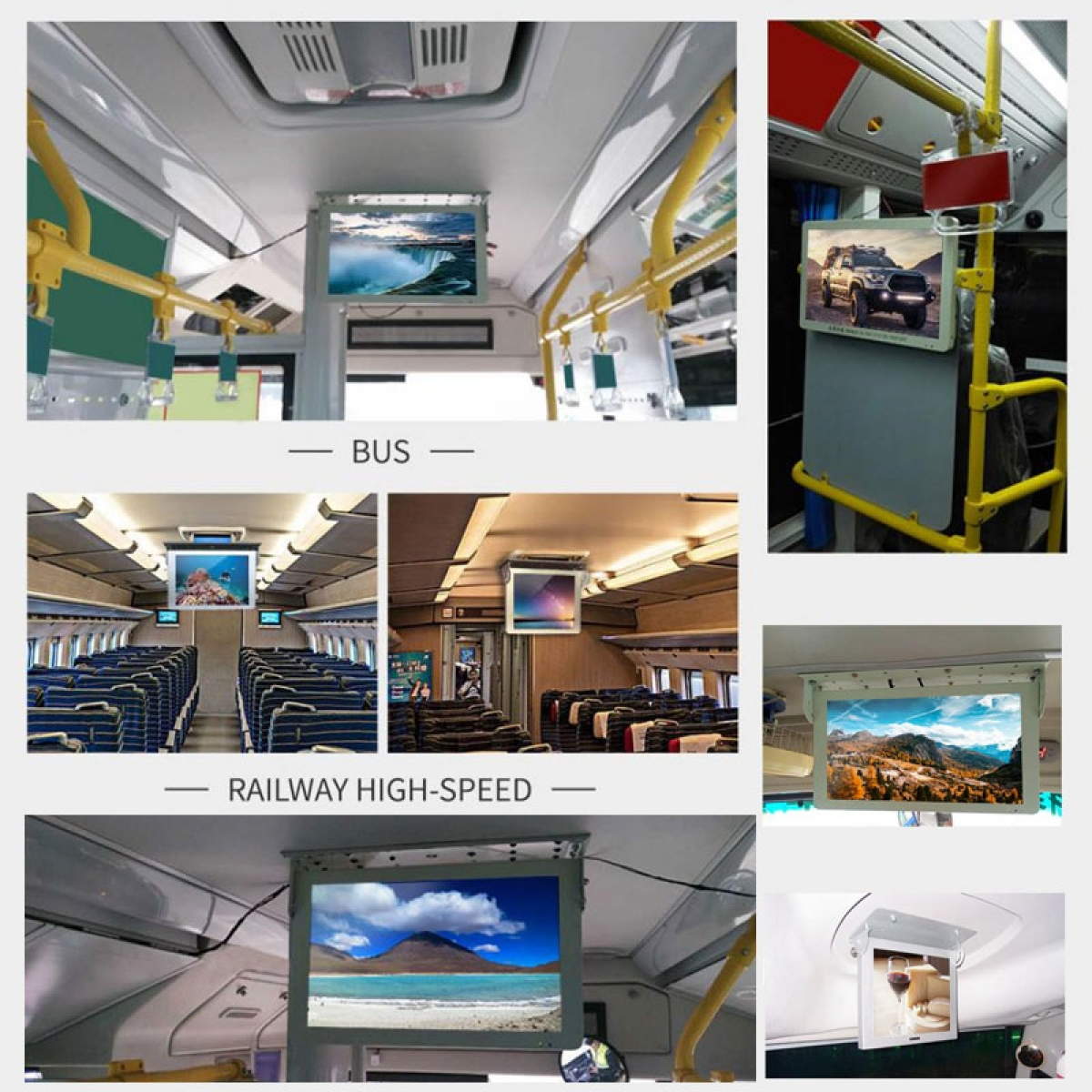

The Dekart DITTV-22001-GY can be mounted in various locations: on the ceiling, walls, handrails, or driver's partitions. These transport advertising displays are perfect for showing route details, advertisements, or other critical information. The DITTV series monitor supports video looping, ensuring continuous content playback for maximum passenger engagement. Explore all our displays and screens for comprehensive digital signage options.
This information screen for transport is built for long-lasting performance. It is ideal for displaying audiovisual advertisements, travel guides, or entertainment content. If you need a reliable solution to enhance passenger engagement, the Dekart DITTV-22001-GY offers the perfect combination of stylish design, high brightness, and functionality. Browse digital signage projects or public transport case studies to see real-world deployments.

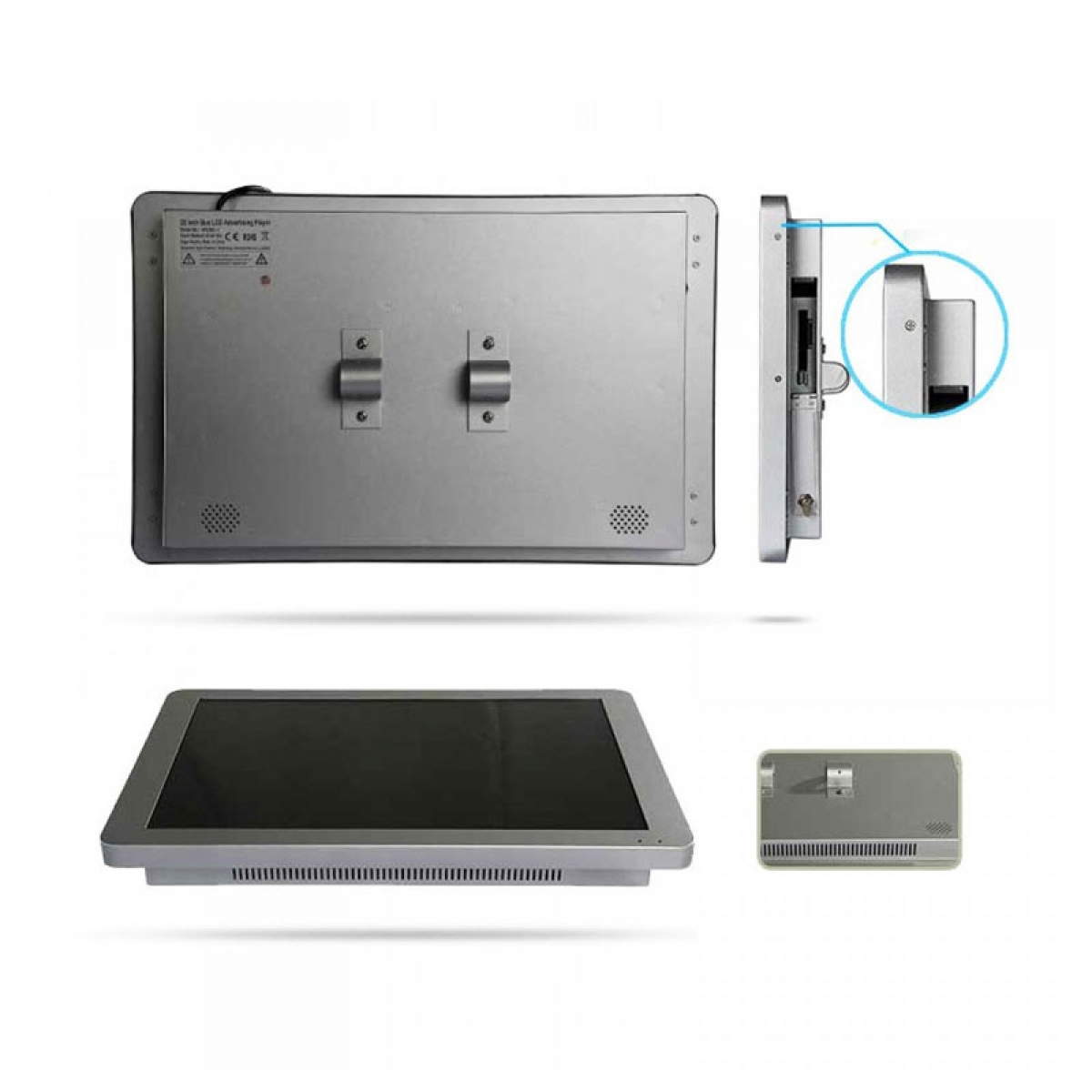

Display for minibus
Discover USB chargers for buses and trains for complete onboard passenger amenities. The Dekart DITTV-22001-GY remains the top choice for public transport operators seeking reliable digital signage solutions.

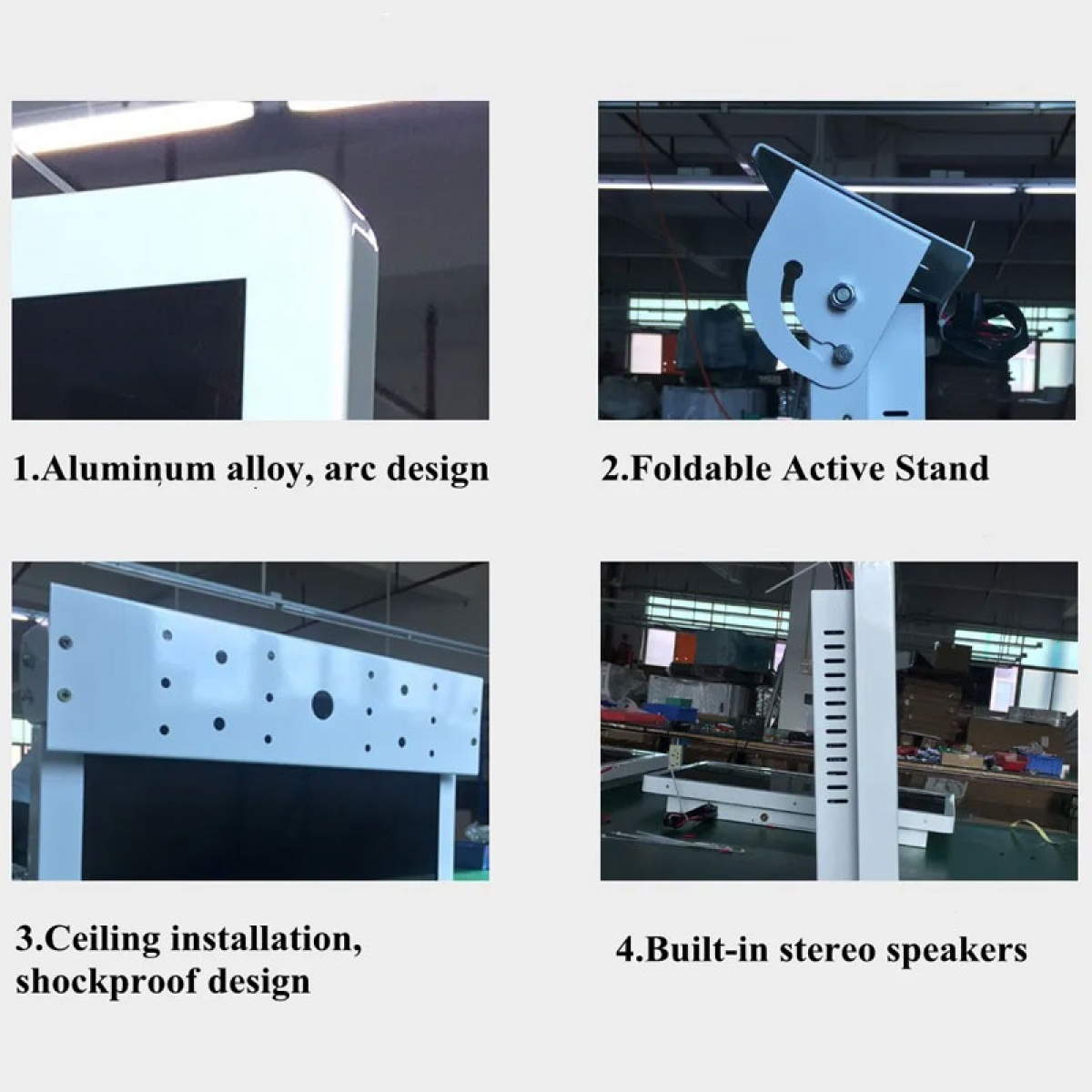

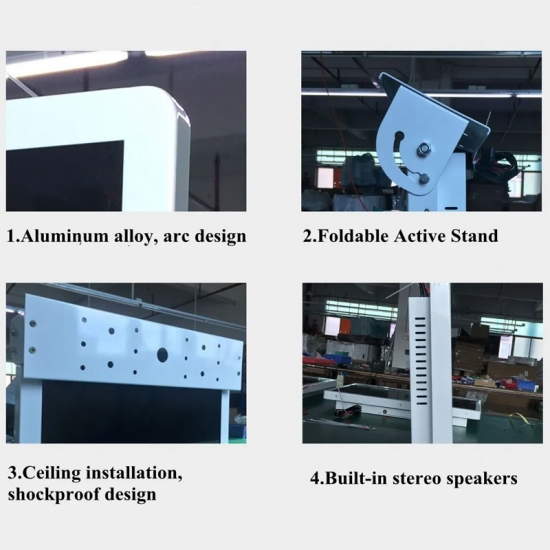

Video monitor for buses

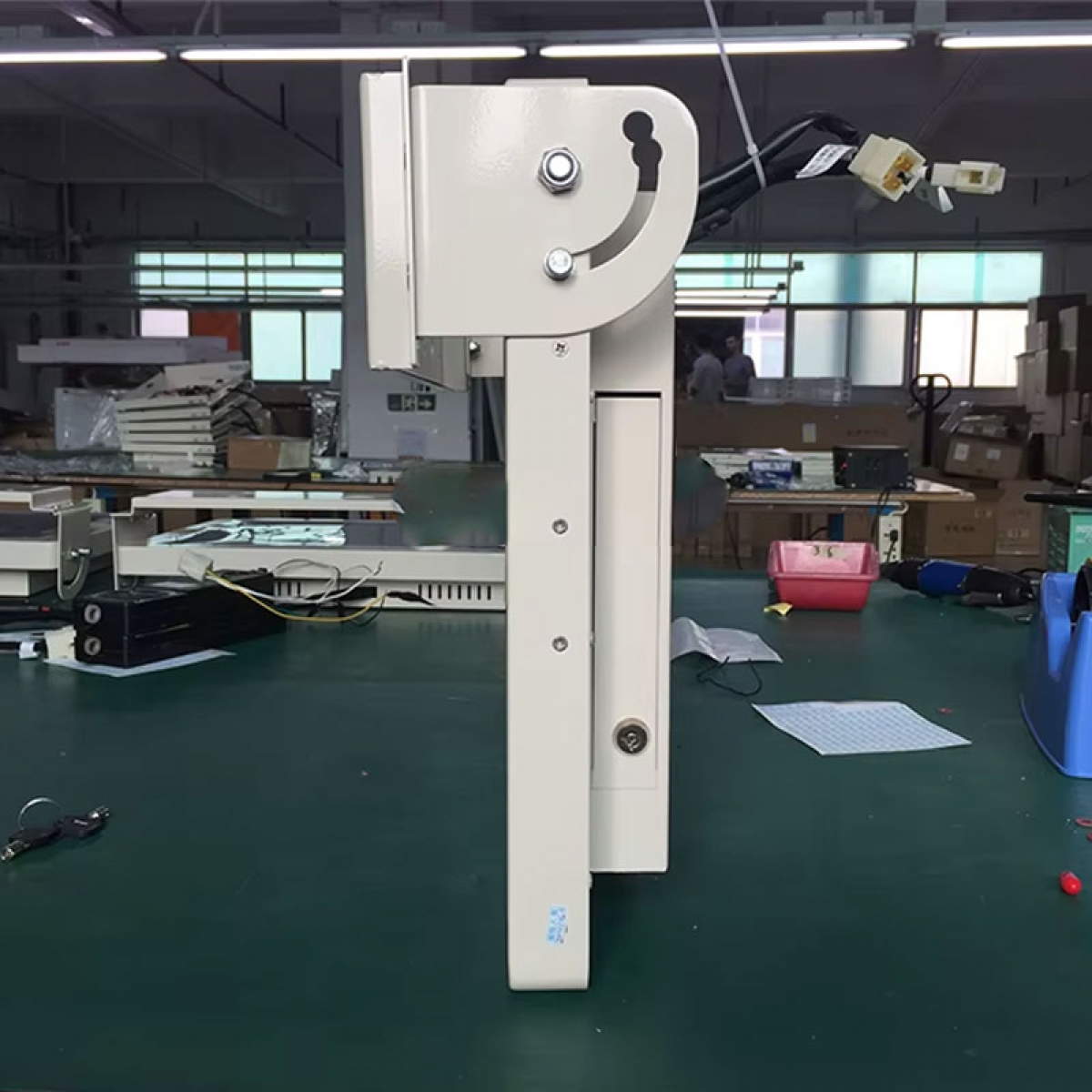

Digital display for transport

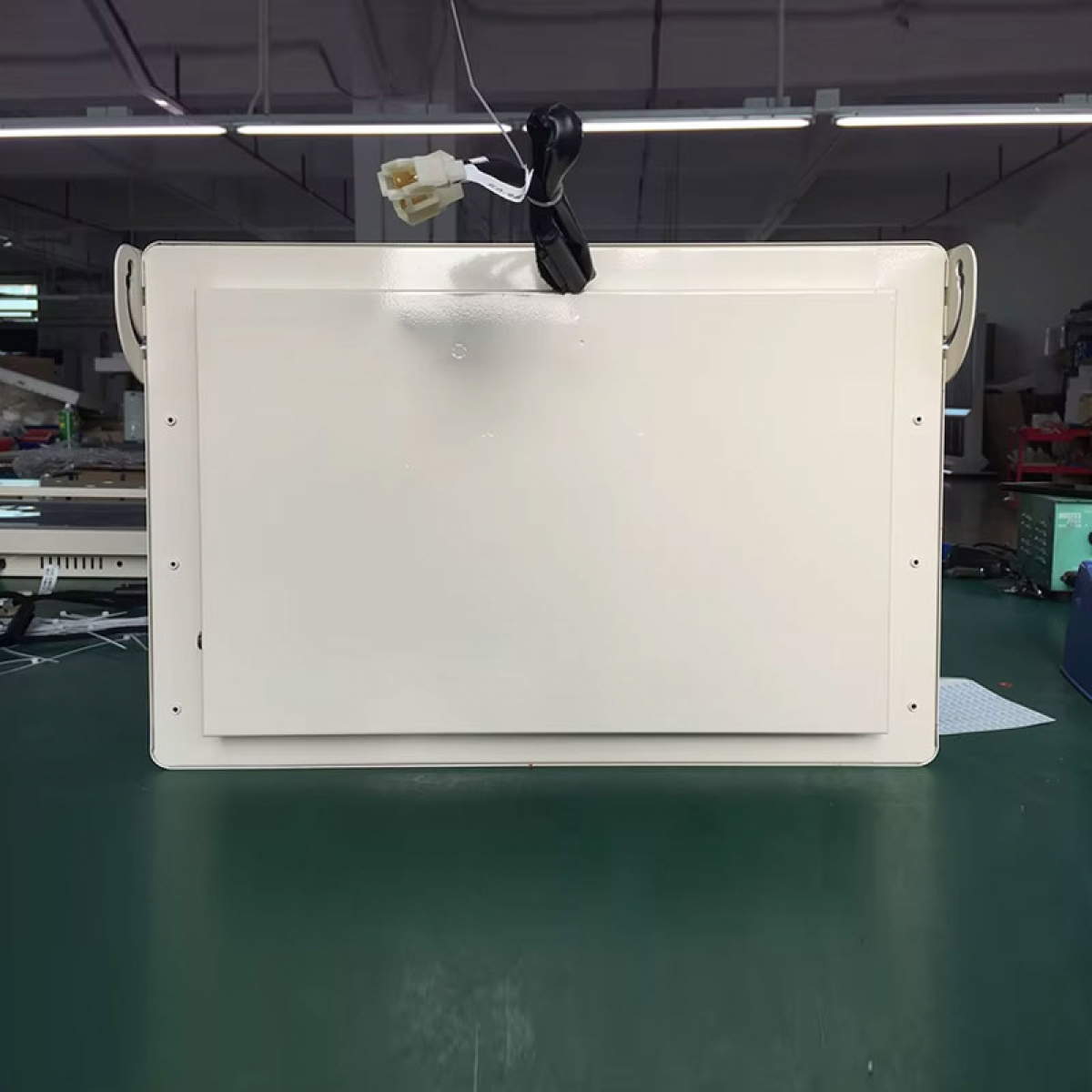

Digital screen for transport
Transport advertising displays
Advertising display in bus
Information screen for transport
22" Digital Transport Display for Advertising Android Dekart DITTV-22001-GY
| Common parameters | |
| Model | DITTV-22001-GY |
| Type | bus advertising monitor, transit advertising screen, display for public transport |
| Application area | in transport, for advertising in transport, |
| Casing material | steel |
| Casing coating | matte |
| Casing color | gray |
| Casing size | 52x34x4,7 cm (7,2x4,7x0,7 in) |
| Weight | 7,2 kg (15,9 lb) |
| Horizontal installation | yes |
| Vertical installation | by request |
| IP class | 50 |
| Mount | ceiling bracket, wall bracket, handrail mounting |
| VESA Size | no |
| Enclosure security | hatch for interfaces with lock (option) |
| Screen security | 3mm tempered glass |
| Operating temperature | -20÷40°C (-4÷104°F) |
| Operating humidity | 11÷85% |
| Operating mode | 24x7 |
| Life time | 50,000 hours |
| Tech support | 12 months |
| Guarantee | 12 months |
| Features | • Durable metal housing • Screen protection with tempered glass • High-quality LCD IPS screen (full view angles) • High-quality FullHD (1920x1080px) screen • Top level colors, brightness, contrast • Full view angle screen (178/178 degree) • Android OS 2/16Gb • Built-in speakers 2x5W • Internal power supply • IR remote control • Multilingual settings menu • Top quality professional-grade parts only |
| Functions | |
| Other functions | • Option: Video input interfaces only (HDMI/DP/DVI/VGA/RCA options) • Option: Internal AD Player from USB flash • Option: Android OS 4/32Gb or more • Option: Windows OS 4/120Gb or more • Option: CMS for Remote control via LAN/Internet - remote update of media files and playlists • Option: Door with lock for the interfaces • Option: Special climate adaptation for hot and cold conditions • Option: HD Camera • Option: 4K Camera • Option: Location services GPS/Glonass/Beidou • Option: Splitscreen into zones for simultaneous display of multiple media • Option: Show date and time in the corner of the screen • Option: AV input (CVBS) • Option: HDMI video + audio input • Option: DisplayPort • Option: VGA • Option: DVI • Option: AUX/Headphones Audio output • Option: 3G / 4G / 5G network connection • Option: RS232 I/O Interface (COM PORT) • Option: RS485 I/O Interface • Option: Bluetooth • Option: NFC |
| Screen | |
| Screen shape | flat |
| Screen diagonal | 21,5" (55 cm) |
| Aspect ratio | 16:9 |
| Screen resolution | 1920x1080 |
| Visible screen area | 48x27 cm (18,7x10,5in) |
| LCD Type | IPS LED |
| Matrix backlight type | LED |
| Brightness | 300 cd/m2 |
| Contrast | 1000:1 |
| Dynamic contrast | 12000000:1 |
| Response time | 3 ms |
| Number of colors | 12000000 |
| Horizontal viewing angle | 178 |
| Vertical viewing angle | 178 |
| Screen coverage | tempered glass |
| Interactive | |
| Camera | option |
| Microphone | option |
| Buttons | option |
| GPS/Glonass/Beidou | option |
| System | |
| CPU | 4 core or more |
| RAM | 2Gb or more |
| ROM | 16Gb or more |
| Operating system | Android |
| Menu language | English, Spanish, French, German, Italian, Russian, Swedish, Portuguese, Arabic, Turkish, Polish, Dutch, Traditional Chinese |
| Video formats | MPG, AVI, MP4, DIVX, XVID, VOB, DAT, RM, RMVB, MOV, FLV, PMP, 3GP, MKV, M2TS |
| Graphic formats | GIF, JPG, PNG, BMP |
| Music formats | MP3, MP2, MP1, WMA, OGG, APE, FLAC, AC3, RA, AAC |
| Vector formats | SVG |
| HTML | Built-in Browser |
| Programming languages | Andriod APPs, APK |
| Presentations | PPT in JPG |
| Other formats | - |
| Sound | |
| Sound type | stereo |
| Built-in speakers | yes |
| Management | |
| IR Remote | yes |
| Buttons on the case | no |
| Internet | yes |
| Interfaces | |
| HDMI | option |
| Display Port | option |
| USB | 1 |
| Bluetooth | option |
| NFC | no |
| 3G/4G/5G | option |
| Other interfaces | • 12-24V transport DC power input with protection (9-36V) • USB for connecting external devices and storage devices • SD storage card slot • LAN cable network connection (RJ45) • WI-FI network connection |
| Power | |
| Power supply type | built-in |
| Power supply voltage | 11÷28 V DC |
| Power consumption | 34W |
| Transportation | |
| Contents of delivery | Display, bracket, power cord, remote control, CR2025 battery, manual, packaging |
| Storage temperature | -20÷40°C (-4÷104°F) |
| Package dimensions | 67x49x20 cm (9,3x6,8x2,8 in) |
| Shipping weight | 8,6 kg (19 lb) |
