1850W ATX Mining PSU – Zumax ZU-1850W
- Stock: In Stock
- Model: PSU-ZUMAX-1850W
Premium 1850W ATX Mining Power Supply with 16 PCIe Connectors and 80 PLUS Gold Efficiency
The Zumax ZU-1850W stands as a titan in the mining power supply unit (PSU) market, specifically engineered to meet the gruelling demands of 24/7 multi-GPU rigs, industrial servers, and high-end workstations. With a massive 1850W total output capacity, this unit eliminates common power delivery bottlenecks. Whether you're running NVIDIA RTX series cards or AMD Radeon monsters, the Zumax 1850W delivers clean, consistent wattage to prevent crashes and maximise hardware lifespan.
1850W ATX Mining PSU – Zumax ZU-1850W
Unrivalled Power Delivery and Efficiency
The core strength lies in its robust single +12V rail design, delivering up to 144A to ensure stable hash rates in mining environments where even minor voltage drops cause rejected shares. Efficiency is handled by 80 PLUS Gold equivalent architecture, converting AC to DC with up to 90% efficiency under typical loads, reducing heat waste and electricity bills while extending capacitor lifespan.

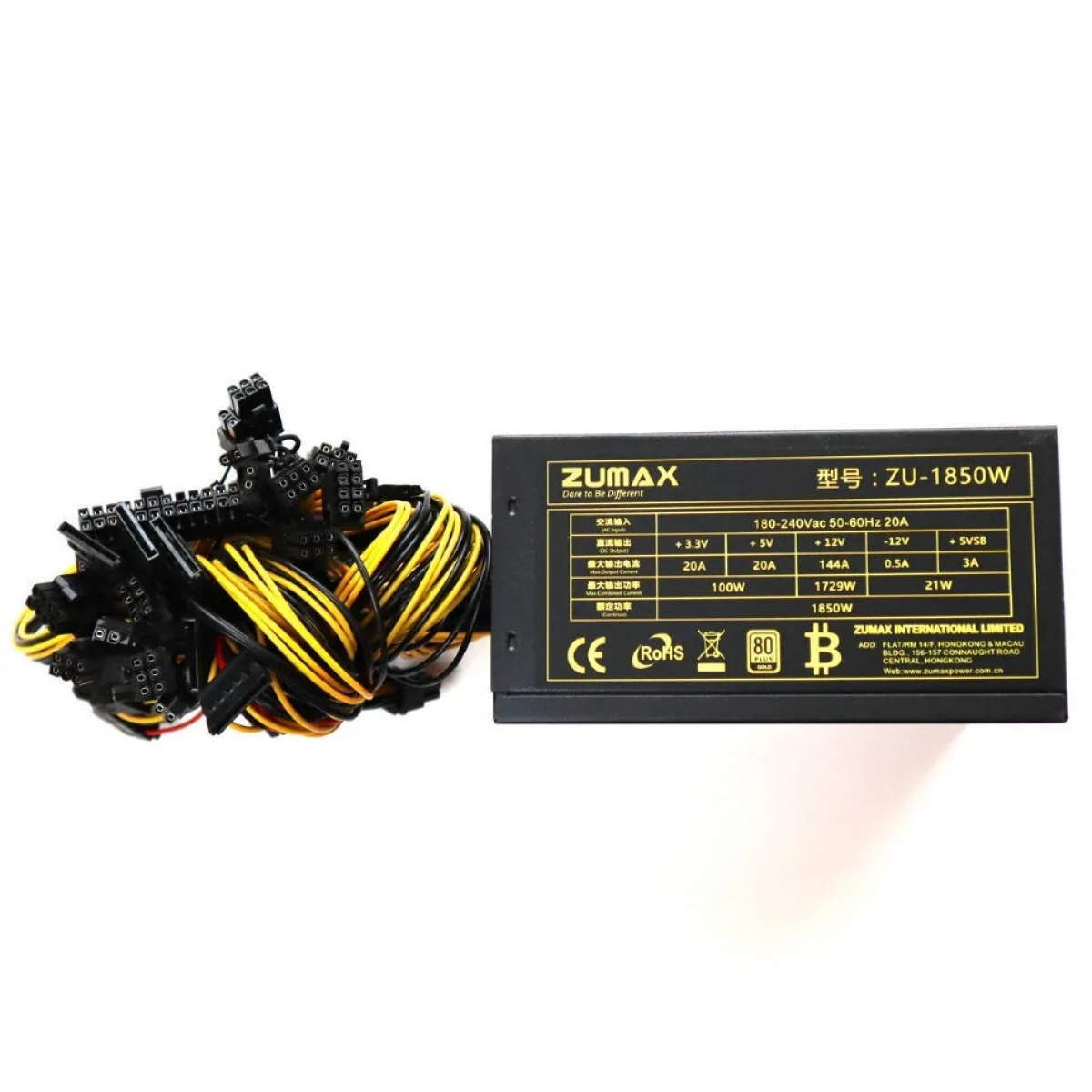

Zumax 1850W mining power supply
Advanced Thermal Management
Heat is the primary enemy of electronics, and the Zumax 1850W tackles this with an industrial-grade 140mm cooling fan. The internal layout is optimised for "straight-through" airflow, utilising high-quality aluminium heatsinks that dissipate heat rapidly from primary transformers and secondary rectifiers.
1850W PSU for GPU rigs
Designed for Scale: Massive Connector Array
The ZU-1850W comes factory-equipped with 16 dedicated 6+2 Pin PCI-E connectors, allowing you to power up to 8 high-end GPUs or 16 mid-range cards directly from the source. The cables utilise high-gauge 18AWG copper wiring to handle high current without melting or overheating. For more mining and crypto setup solutions, explore our complete range of mining power products.

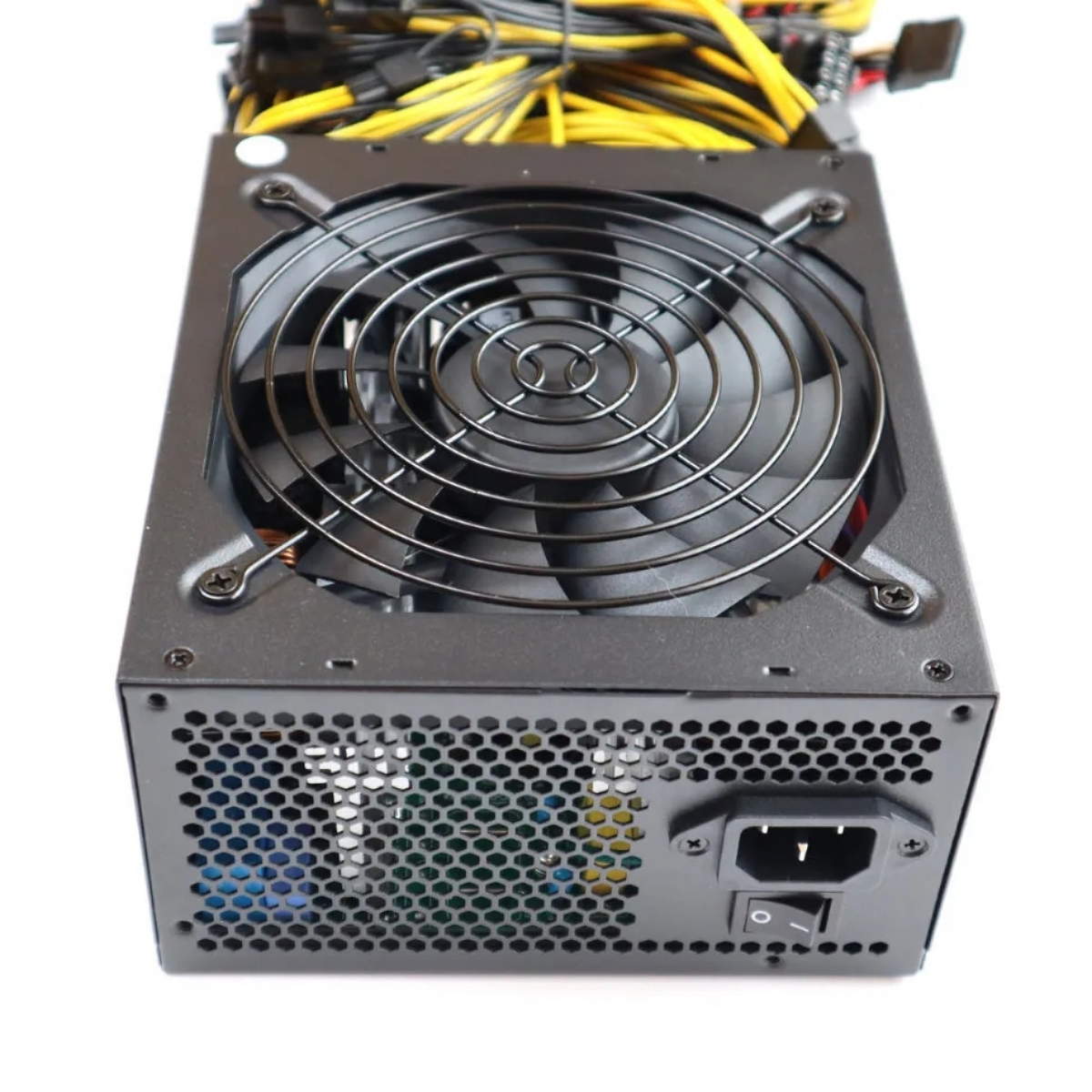

High efficiency ATX mining PSU
Comprehensive Safety Protections
The Zumax 1850W is built with a full suite of industrial-grade protection circuits:
- OVP (Over Voltage Protection) – prevents damage from voltage spikes.
- UVP (Under Voltage Protection) – shuts down if input voltage drops below safe threshold.
- SCP (Short Circuit Protection) – instantly cuts power if a short is detected.
- OPP (Over Power Protection) – ensures safe maximum draw.
- OCP (Over Current Protection) – monitors rails to prevent excessive current.

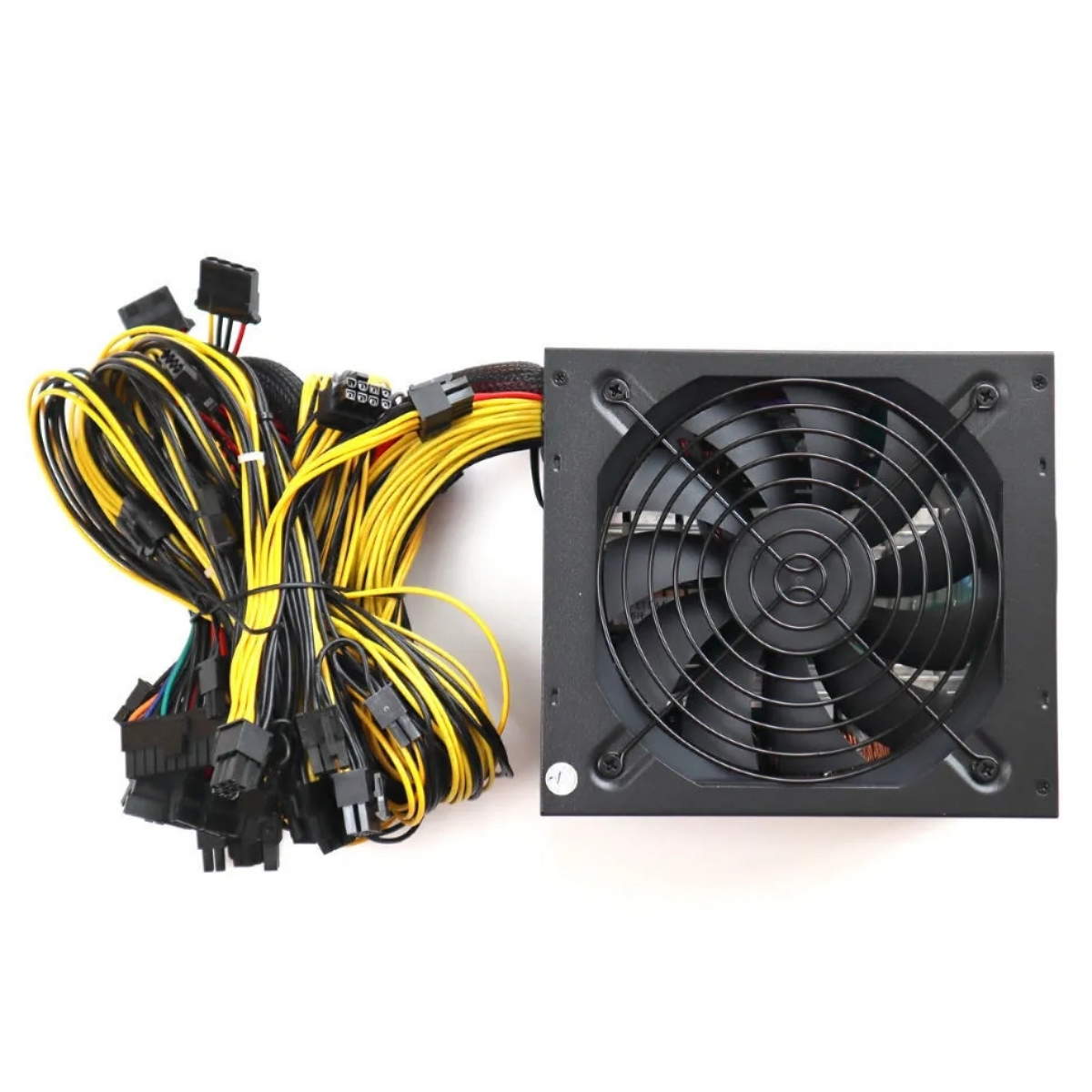

16 PCIe connector power supply
Technical Specifications
| Feature | Specification Details |
|---|---|
| Model | Zumax ZU-1850W / Gold Series |
| Max Output Power | 1850 Watts (Nominal) |
| Efficiency Rating | 80 PLUS Gold Certified (Up to 90-92% Efficiency) |
| Input Voltage | 180V - 240V AC (Auto-switching) |
| Input Frequency | 47Hz - 63Hz |
| +12V Rail Output | 144A / 1728W - 1750W |
| +5V / +3.3V Output | 15A / 15A (Combined 100W) |
| PFC Type | Active PFC (Power Factor Correction) |
| Fan Size | 140mm Dual Ball Bearing High-Pressure Fan |
| Form Factor | ATX (Extended length for cooling) |
| Dimensions | 165mm x 150mm x 86mm (6.5x5.9x3.4 inches) |
| MTBF | >100,000 Hours |
Connector Configuration
| Connector Type | Quantity |
|---|---|
| Main Motherboard (20+4 Pin) | 1 |
| CPU Power (4+4 Pin ATX 12V) | 1 |
| PCI-E (6+2 Pin) | 16 |
| SATA Power (for SSD/HDD/Risers) | 8 |
| Peripheral (Molex 4-Pin) | 6 |
Why Choose Zumax 1850W?
The Zumax 1850W is not just a power supply; it is a specialised tool for the modern digital era. It bridges the gap between expensive enterprise server PSUs and standard desktop units. By focusing on high GPU density and thermal resilience, Zumax has created a product that allows miners and data scientists to scale operations without fear of power-related downtime. Check out our case studies and projects featuring similar industrial-grade power solutions.
For those building Ethereum Classic, Ravencoin, or Kaspa rigs, or operating AI training workstations, the Zumax 1850W offers the best price-to-wattage ratio in its class, backed by modern safety standards and industrial build quality.

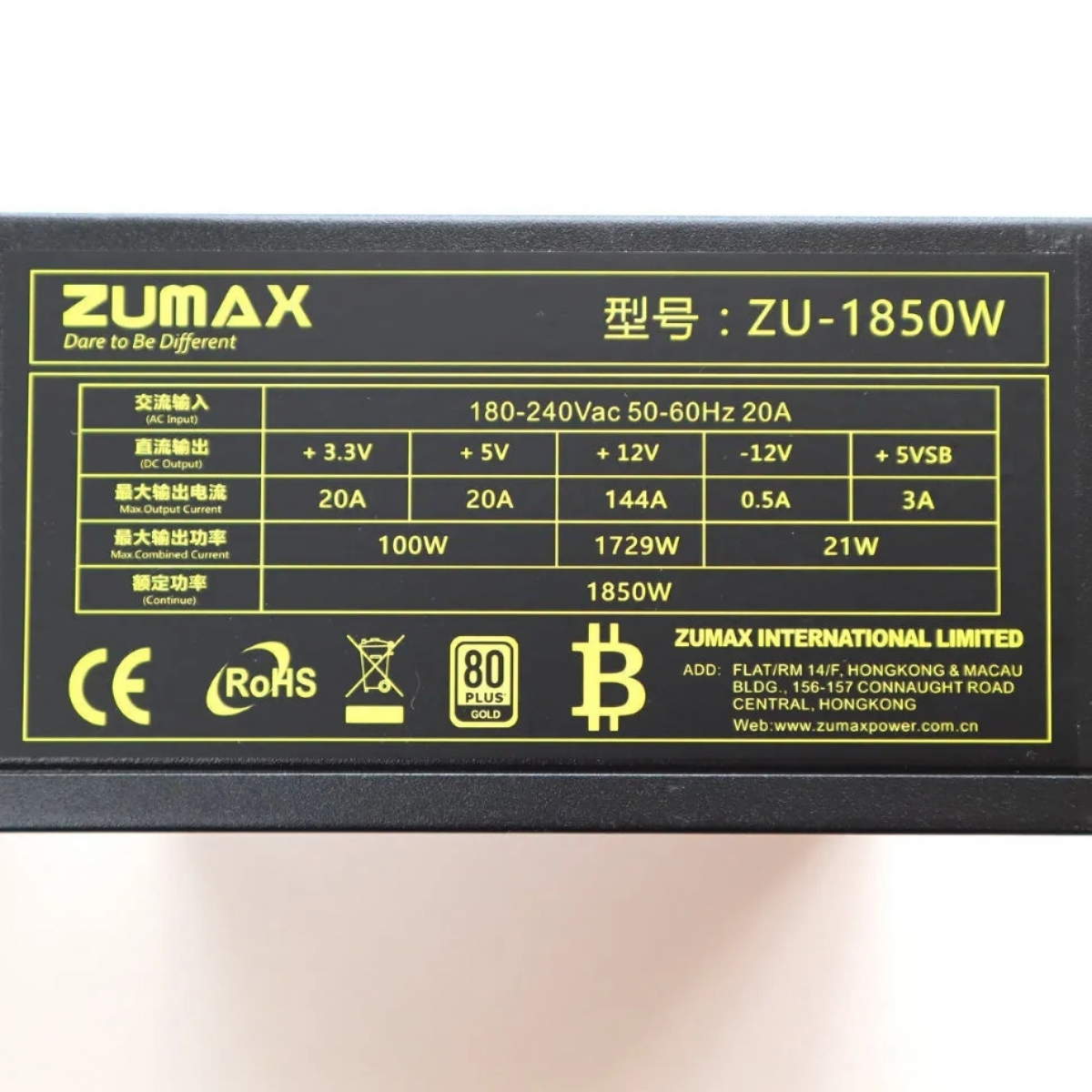

80 PLUS Gold mining PSU
